產品詳細
工作極限溫度：105 Ui=300V 端頭材質：紫銅管 | ||||||

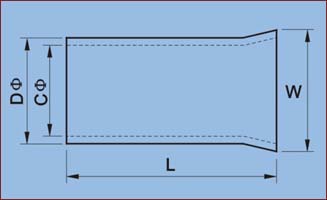

型 號 | 尺 寸(mm) | 導線面積 | ||||
L | D | C | W | A.W.G | mm? | |
EN0506 | 6.0 | 1.3 | 1.0 | 2.1 | #22 | 0.5 |
EN7506 | 6.0 | 1.5 | 1.2 | 2.5 | #20 | 0.75 |
EN876 | 6.0 | 1.7 | 1.4 | 2.7 | #18 | 1.0 |
EN1010 | 10.0 | |||||
EN1507 | 7.0 | 2.0 | 1.7 | 3.5 | #16 | 1.5 |
EN1510 | 10.0 | |||||
EN2507 | 7.0 | 2.5 | 2.2 | 2.5 | #14 | 2.5 |
EN2512 | 12.0 | |||||
EN4009 | 9.0 | 3.2 | 2.8 | 4.0 | #12 | 4.0 |
EN4012 | 12.0 | |||||
EN6010 | 10.0 | 3.9 | 3.5 | 4.8 | #10 | 6.0 |
EN6012 | 12.0 | |||||
EN6015 | 15.0 | |||||
EN10-12 | 12.0 | 4.9 | 4.5 | 5.8 | #7 | 10.0 |
EN10-15 | 15.0 | |||||
EN10-18 | 18.0 | |||||
EN16-12 | 12.0 | 6.2 | 5.8 | 7.5 | #5 | 16.0 |
EN16-15 | 15.0 | |||||
EN16-18 | 18.0 | |||||
EN25-16 | 16.0 | 7.9 | 7.5 | 9.2 | #4 | 25.0 |
EN25-22 | 22.0 | |||||
EN35-16 | 16.0 | 8.7 | 8.3 | 10 | #2 | 35.0 |
EN35-25 | 25.0 | |||||
EN50-20 | 20.0 | 10.9 | 10.3 | 12.4 | #1 | 50.0 |
