產品詳細
| 圖號 | 品名編號 | 板厚 | 尺寸Dimension(mm) | 適用電線 | 數量 | 備注 | ||||
| T | Wire Range | Q'TY | ||||||||
| W | D | E | L | (AWG#) | (Reel) | |||||

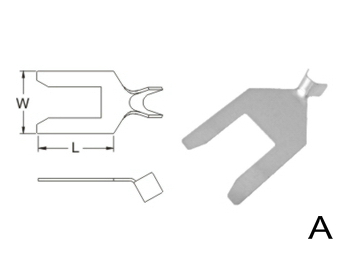

| A | K000043 | 0.3 | 25.0 | | 23.2 | 12~14 | 1000 | |||

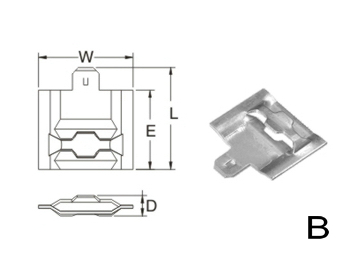

| B | K000050 | 0.5 | 16.0 | 3.2 | 12.3 | 17.1 | 2000 | |||

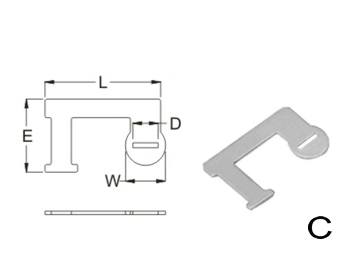

| C | K300060 | 0.4 | 4.8 | 3.0 | 8.7 | 13.8 | 10000 | |||

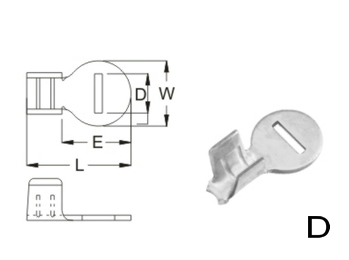

| D | K300071 | 0.4 | 4.8 | 3.0 | 5.2 | 8.0 | 18~20 | 10000 | ||

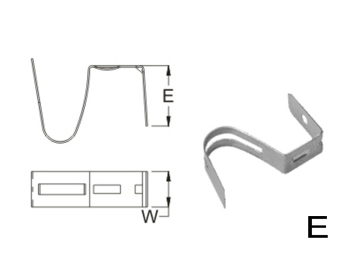

| E | K000080 | 0.2 | 5.05 | | 8.2 | 1000 | ||||

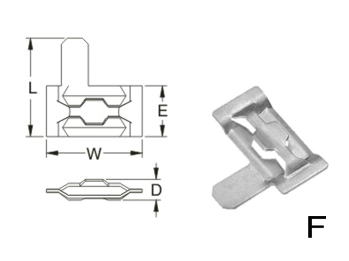

| F | K000090 | 0.5 | 16.2 | 3.0 | 7.7 | 15.0 | 2000 | |||

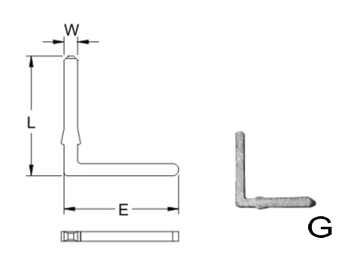

| G | K000470 | 0.6 | 0.85 | 7.15 | 7.45 | 10000 | ||||

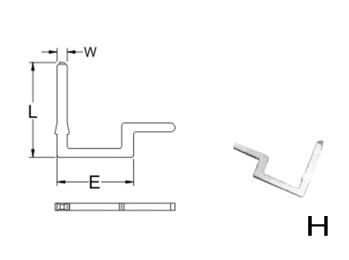

| H | K000480 | 0.6 | 0.85 | 6.45 | 8.0 | 10000 | ||||
