產品詳細
| 圖號 | 品名編號 | 板厚 | 尺寸Dimension(mm) | 適用電線 | 數量 | 備注 | ||||
| T | Wire Range | Q'TY | ||||||||
| M | W | E | D | L | (AWG#) | (Reel) | ||||

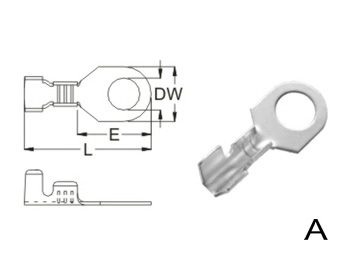

| A | R775010 | 0.5 | 7.7 | 9.8 | 5.0 | 18.3 | 18~20 | 5000 | ||

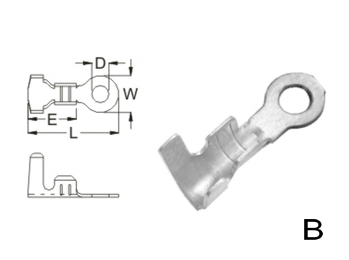

| B | R261210 | 0.2 | 2.6 | 3.0 | 1.2 | 6.5 | 26~30 | 15000 | ||
| B | R351810 | 0.3 | 3.5 | 5.5 | 1.8 | 10.1 | 18~22 | 15000 | ||

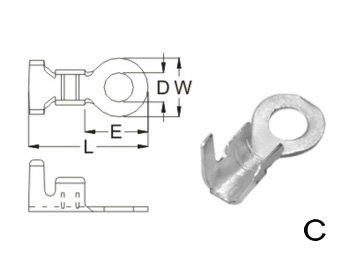

| C | R502201 | 0.4 | 5.0 | 5.4 | 2.2 | 10.1 | 18~22 | 15000 | ||
| C | R502501 | 0.4 | 5.0 | 5.4 | 2.5 | 10.1 | 18~22 | 15000 | ||
| C | R502401 | 0.4 | 5.0 | 5.4 | 2.4 | 10.1 | 18~22 | 15000 | ||
| C | R503201 | 0.4 | 5.0 | 5.4 | 3.2 | 10.1 | 18~20 | 15000 | ||
| C | R502701 | 0.4 | 5.0 | 5.5 | 2.7 | 10.5 | 20~22 | 20000 | ||

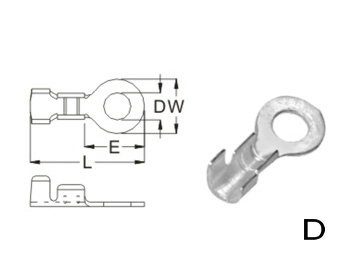

| D | R502510 | 0.4 | 5.0 | 5.5 | 2.5 | 10.5 | 20~22 | 25000 | ||
| D | R502511 | 0.3 | 5.0 | 5.5 | 2.5 | 10.5 | 20~22 | 20000 | ||
| D | R503210 | 0.4 | 5.0 | 5.5 | 3.2 | 10.5 | 20~24 | 25000 | ||
| D | R502210 | 0.4 | 5.0 | 5.5 | 2.2 | 10.5 | 20~22 | 25000 | ||
| D | R604201 | 0.4 | 6.0 | 7.0 | 4.2 | 12.5 | 22~26 | 15000 | ||
